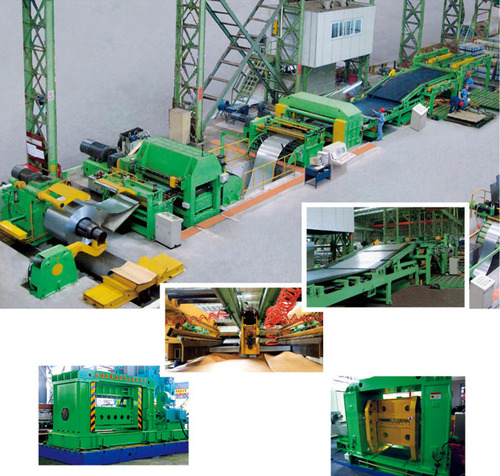

Flying Shear Cut To Length Line-NANGTON CHINA

Flying Shear Cut To Length Line-NANGTON CHINA
Flying Shear Cut To Length Line-NANGTON CHINA
Product Code : 08
Product Description

We have established a dominant position in the market by manufacturing and supplying a best quality array of Flying Shear Cut To Length Line. This equipment is manufactured with the consistent improvisation pioneering technology using the supreme grade components at our fully-equipped manufacturing setup. This equipment is used in shearing operations on various metals. Our quality experts check this equipment on certain parameters of quality in order to remove any possibility of defect. Moreover, we offer this Flying Shear Cut To Length Line in various specifications at reasonable rates.

Features:

  • User friendly interface

  • Smooth operations

  • Longer service life

  • Low maintenance

Specifications:
â—†  The production line is a thin metal coil leveling and cut into a massive sheet of special equipment. Usually cited by the feeding car, uncoiler, pallet pressure device, leveling host activities across the bridge, guide corrective devices, length agencies, film equipment, shears, conveyor table, pneumatic discharge rack, hydraulic lift the composition of the pile material, material transport roller and hydraulic system, electrical control system, the concerted action of PLC control. The main hydraulic, pneumatic and electronic control components, cut to length system selected international brands.
â—†  This equipment is mainly used for processing cold-rolled carbon steel coil, stainless steel coil, and non-ferrous metal coil, configuration, six-leveler to the entire pacification of long shear plate surface of the metal aluminum and other high coil .
â—†  According to customer requirements, the fine two leveler leveler leveler can be used early; fixed length sent to shear can be ordinary mechanical appliances collaborative action, digital variable frequency or AC servo technology; shears can be equipped with the ordinary machinery, hydraulic press type electromagnetic clutches, pneumatic clutch transmits power high-speed gate shears, mobile tracking the chase cut and rotary flying shear machine. Supporting related molding machine can be used for a wider range extension.


Technical Specification:-

 Name  UNIT  The Range to choose from
 Strip Thickness
 mm  0.3 - 2, 0.5 - 3, 1.5 - 5
 Strip Width  mm 800, 1000, 1250, 1500, 2000
 Uncoiler Load Bearing
 MT  5, 12, 15
 Leveler Flatness
 mm/m²   ±1
 Length - Fixing Precision
 mm/m   ±0.30, ±0.50
 Max. Liner Velocity of Cut-to-length Line
 m/min  40, 60, 80, 100
 Total Power
 kW  65, 95, 110
