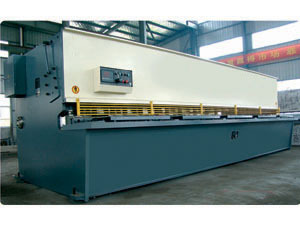

QC12Y-8 Series Hydraulic Swing Beam Shear

QC12Y-8 Series Hydraulic Swing Beam Shear
QC12Y-8 Series Hydraulic Swing Beam Shear
Product Code : 20
Product Description

Owing to our steadfast quality commitment, we have emerged as a renowned organization to manufacture and supply a best quality array of QC12Y-8 Series Hydraulic Swing Beam Shear. The offered machine is manufactured with the use of premium quality raw materials and the cutting-edge technology in line with the set industry standards. Quality tested on certain parameters of quality, this machine is known for its strong construction and hassle free operations. Moreover, this QC12Y-8 Series Hydraulic Swing Beam Shear is available at most competitive rates for the clients.

Features:

  • Easy operations

  • High performance

  • Energy efficient

  • Longer service life

Performance :-

  • The frame is entirely welded with steel plates, vibration to eliminate stress. With high strength and good rigidity.

  • Hydraulic drive, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder. With easy operation, reliable performance and nice appearance.

  • There is indicator for adjusting the blade clearance, easily operation.

  • There are safety fences in the working area to ensure the personal safety

  • There are numerical display for cutting number and the length of back gauge.

Parameter of QC12Y / QC 12K Series Hydraulic Swing Shearing Machine:-





Specification  &  Parameter Shearing Thickness mm Shearing Width mm Shearing Angle (°) Number of Stroke min-1 Backgauge Range mm Motor Power kw
QC 12Y–4 x2500 4 2500 1°30' 18 20 ~ 600 4.0
QC 12Y–4 x3200 4 3200 1°30' 18 20 ~ 600 5.5
QC 12Y–4 x4000 4 4000 1°30' 12 20 ~ 600 5.5
QC 12Y–4 x5000 4 5000 1°30' 10 20 ~ 600 5.5
QC 12Y–4 x6000 4 6000 1°30' 7 20 ~ 800 7.5
QC 12Y–6 x2500 6 2500 1°30' 18 20 ~ 600 7.5
QC 12Y–6 x3200 6 3200 1°30' 14 20 ~ 600 7.5
QC 12Y–6 x4000 6 4000 1°30' 12 20 ~ 600 7.5
QC 12Y–6 x5000 6 5000 1°30' 10 20 ~ 600 7.5
QC 12Y–6 x6000 6 6000 1°30' 7 20 ~ 800 11
QC 12Y–8 x2500 8 2500 1°30' 14 20 ~ 600 7.5
QC 12Y–8 x3200 8 3200 1°30' 10 20 ~ 600 7.5
QC 12Y–8 x4000 8 4000 1°30' 8 20 ~ 600 11
QC 12Y–8 x5000 8 5000 1°30' 7 20 ~ 800 15
QC 12Y–8 x6000 8 6000 1°30' 6 20 ~ 800 15
QC 12Y–8 x8000 8 8000 1°30' 5 20 ~ 800 18.5
QC 12Y–10 x2500 10 2500 1°30' 10 20 ~ 600 11
QC 12Y–10 x3200 10 3200 1°30' 10 20 ~ 600 11
QC 12Y–10 x4000 10 4000 1°30' 8 20 ~ 600 15
QC 12Y–12 x2500 12 2500 2° 10 20 ~ 600 15
QC 12Y–12 x3200 12 3200 2° 9 20 ~ 600 18.5
QC 12Y–12 x4000 12 4000 2° 8 20 ~ 800 22
QC 12Y–12 x5000 12 5000 2° 7 20 ~ 800 22
QC 12Y–12 x6000 12 6000 2° 6 20 ~ 800 30
QC 12Y–12 x8000 12 8000 2° 5 20 ~ 800 30
QC 12Y–16 x2500 16 2500 2° 8 20 ~ 600 22
QC 12Y–16 x3200 16 3200 2° 7 20 ~ 600 22
QC 12Y–16 x4000 16 4000 2° 5 20 ~ 800 30
QC 12Y–20 x2500 20 2500 2°30' 6 20 ~ 800 22
QC 12Y–20 x3200 20 3200 2°30' 6 20 ~ 1000 30
QC 12Y–20 x4000 20 4000 2°30' 6 20 ~ 1000 30
QC 12Y–25 x2500 25 2500 3° 6 20 ~ 1000 30
QC 12Y–25 x3200 25 3200 3° 6 20 ~ 1000 37
QC 12Y–30 x2500 30 2500 3°30' 6 20 ~ 1000 37
QC 12Y–30 x3200 30 3200 3°30' 5 20 ~ 1000 45
QC 12Y–40 x2500 40 2500 3°30' 5 20 ~ 1000 55
QC 12Y–40 x3200 40 3200 3°30' 5 20 ~ 1000 55
QC 12Y–50 x3000 50 3000 3°30' 5
90x3
QC 12Y–50 x6000 50 6000 3°30' 5
90x5
QC 12Y–60 x4000 60 4000 3°30' 5
90x5
